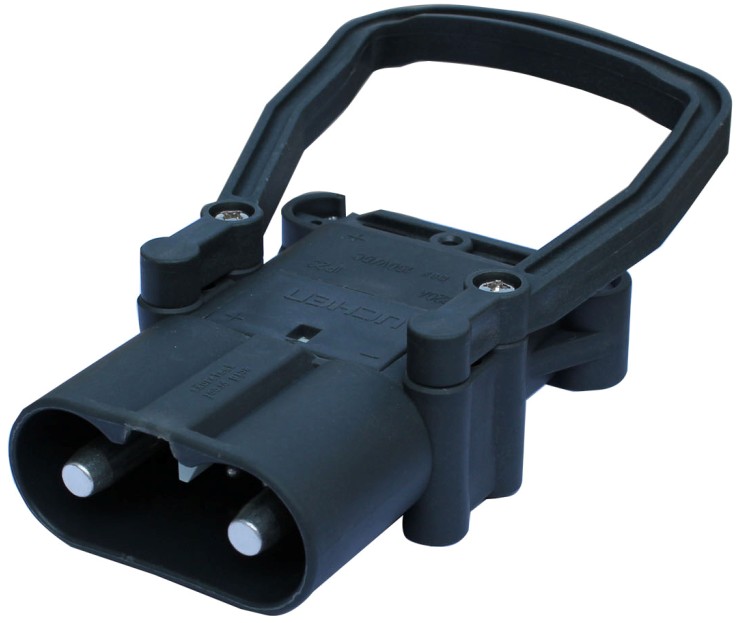

320A Anti Acid Forklift Battery Connector -20℃ - 105℃ Operating Temperature Range
Model: EC320 male/female acid proof connector
Product Specifications
| Product Name | EC male / female anti-acid connectors |
| Product Model | EC320 |
| Using standard | IEC60309-1:1999 |
| Rated Current | 320A |
| Rated voltage | 600V |
| Operating Temperature Range | -20℃-105℃ |
| Withstanding Voltage | 2500V DC |
| Protection class | IP20 |
| The main material | Shell: PP terminal: T2 silver plated |
| Color | Graphic color |
Product Strength
1. Battery charger connector are all environmental safe products
2. Can ensure the fast delivery.The stock goods will be delivered within 3-5 days and the customized goods will be delivered within 5-7 days as soon as we received the T/T payment.
3. We are glad to make samples according to your drawings and specifications.
4. Battery charger connector could be 100% compatible with same series products from other manufactures',such as Yazaki.
5. DC power connector an international standard for set of electrical connectors and charging modes for electric vehicles,electric charging stations and ect.
6. The inspection of AC/DC power connector :100% tested before delivery.
7. Available for ODM/OEM order.
Quality Management
We clearly know that the quality of products bear enormous responsibility for the safety of life and property, so the quality of the management of our business is the most primary and ultimate responsibility.
We have ISO9001 and ISO/TS16949 quality management system certification, and our long-term planning of the quality control system, ISO14001 environmental management system is also about to run.
Product realization process, our high quality running quality management system, all manufactured products had been subject to the most rigorous testing and validation, every product represents our Honor, they are able to meet your requirements,
To further security of your product: product UL, TUV, CE, CSA, SAA, PSE, NF, BS Global countries and holds security certification, and follow these countries for product quality control and standards requirements.
Product Tags:
|
|
320A Anti Acid Forklift Battery Connector -20℃ - 105℃ Operating Temperature Range Images
|
